SKU: 697016
AR5 CV to U Joint Output Adapter Flange Kit
AR5 CV to U Joint Conversion Kit for Solstice Sky and Slingshot Transmissions
The AR5 CV to U joint output adapter flange kit converts Solstice Sky and Slingshot AR5 transmissions from a factory CV style output to a traditional U joint driveshaft setup. This allows builders to run a stronger simpler and more serviceable one piece driveline in swap and performance applications.
Unlike Colorado AR5 transmissions these car based units use a CV flange output which limits driveshaft options. This kit solves that by enabling standard 1310 or 1350 U joint configurations.
Engineered for Strength Simplicity and Swap Compatibility

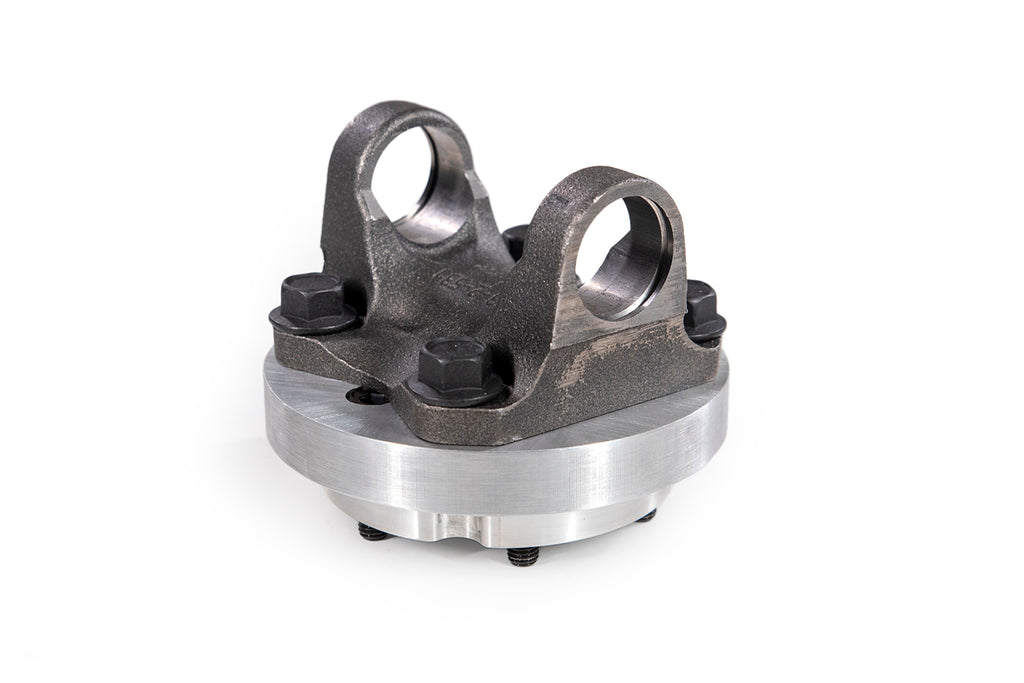

• Converts AR5 CV flange output to U joint driveshaft connection
• Supports 1310 and 1350 U joint configurations
• Eliminates factory CV joint limitations
• Simplifies custom driveshaft builds
• Designed for swap and performance applications
• CNC machined billet construction for strength and precision

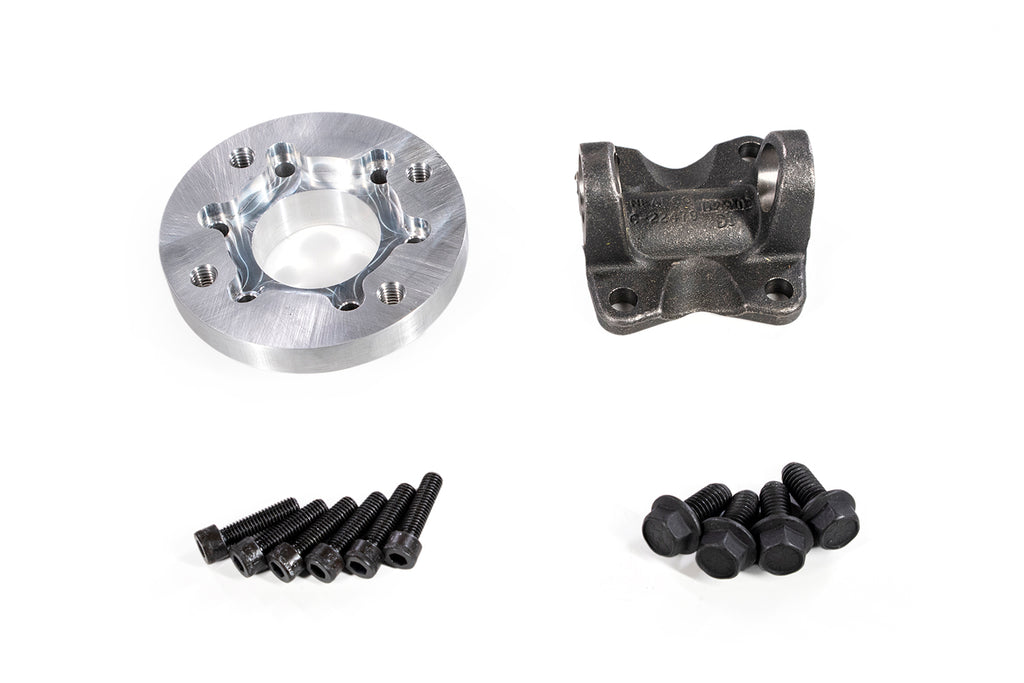

Included Components

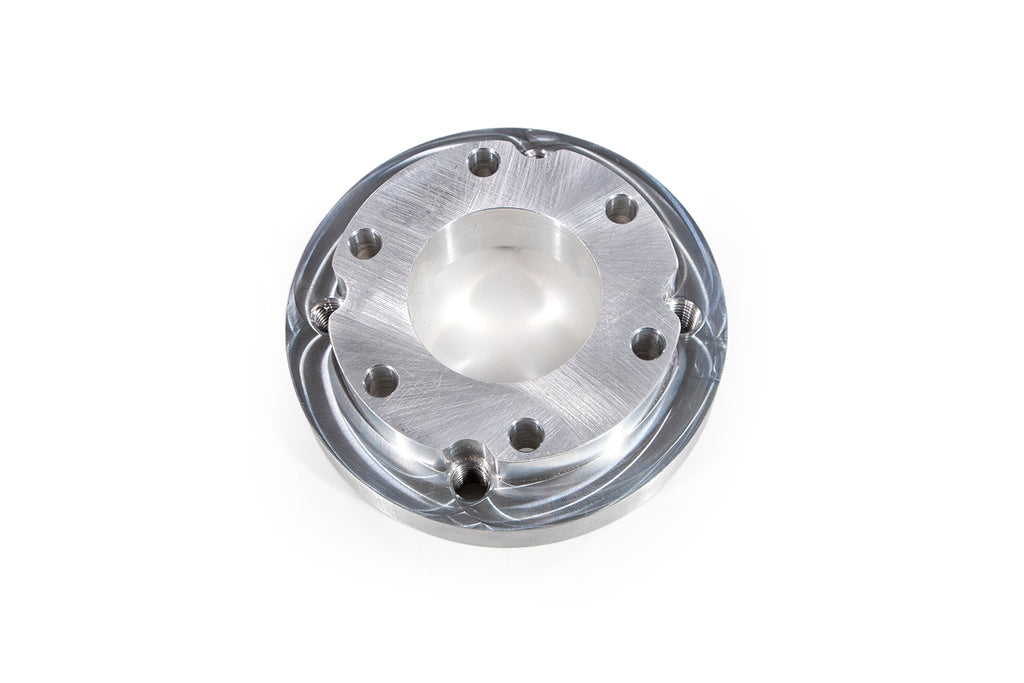

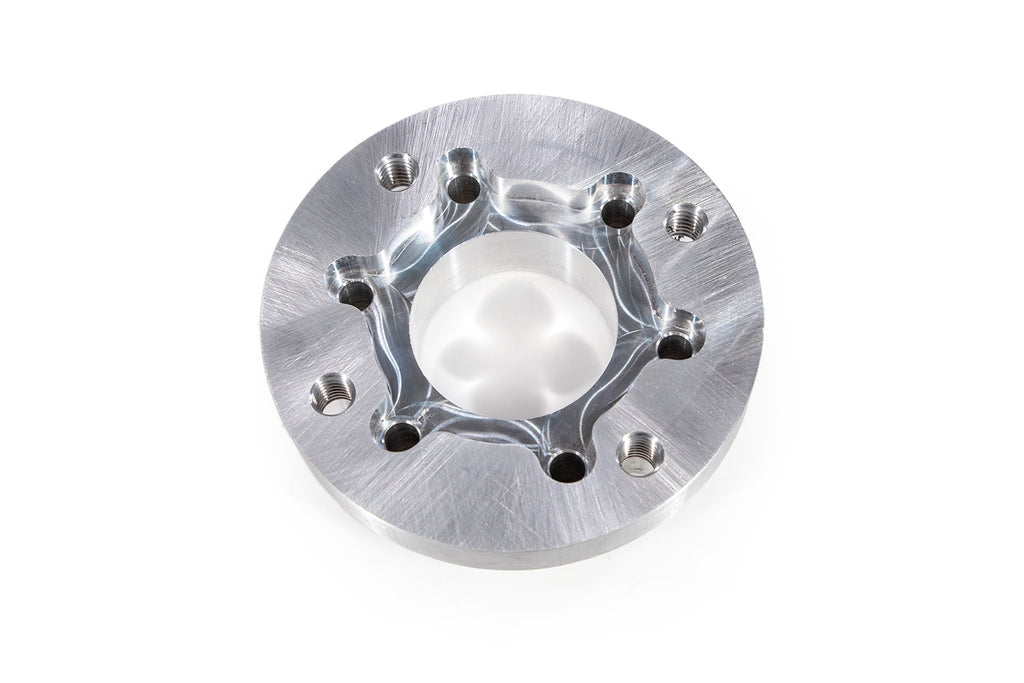

• 6061 T6 billet aluminum adapter flange
• Spicer U joint yoke in 1310 or 1350 size
• M8 socket head hardware
• Flanged hex bolts
Fitment and Compatibility
• Compatible with AR5 transmissions from Pontiac Solstice Saturn Sky and Polaris Slingshot
• Designed for car based AR5 transmissions with CV flange output
What You Will Need
• AR5 transmission with CV flange output
• Custom one piece driveshaft with 1310 or 1350 U joints
• Driveshaft length matched to chassis and setup
Built for Reliable Real World Performance
This kit provides a clean and durable solution for converting AR5 car transmissions to a more practical U joint driveline. It improves strength serviceability and overall drivetrain simplicity in high performance and custom builds.
| types | Transmission & Driveline |
| year | 2005-2026 |
| make | Polaris, Pontiac, Saturn |
| model | Slingshot, Solstice, Sky |
| parts category | Driveline Adapters |
| chassis | Kappa |
Customer Reviews
FABbot Solstice/Sky/Slingshot AR5 CV to U-Joint Output Adapter Flange Kit

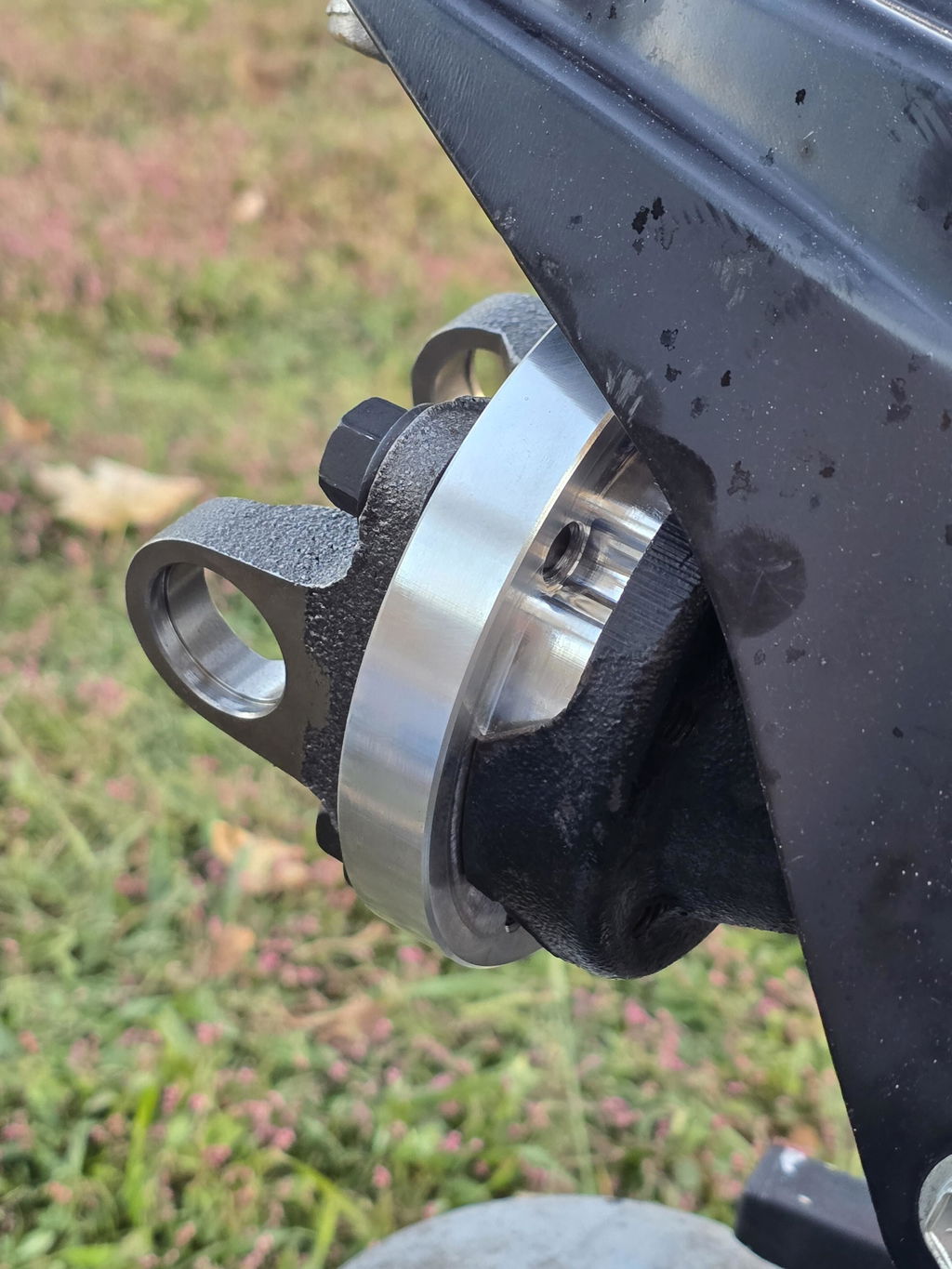

Bought this kit for my ar5 solstice trans to go in my bmw e46 ls swap and works great. Tolerance was so close I had to wire brush the inside of the flange to get the adapter to fit inside it.
Beautifully made piece, should hold up to many pulls and passes.
FABbot Solstice/Sky/Slingshot AR5 CV to U-Joint Output Adapter Flange Kit
15 days ago and nothing receved. 66$ shipping and ship to usps
