SKU: 496003
2004 to 2012 Chevy Colorado GMC Canyon LS Swap Kit AR5 Transmission
Complete LS Swap Kit for Colorado and Canyon with AR5 Transmission
Upgrade your 2004 to 2012 Chevy Colorado or GMC Canyon with a fully engineered LS swap kit designed specifically for AR5 transmission compatibility. This complete conversion package includes the core components required to perform a clean and reliable LS engine swap while maintaining proper fitment, driveline alignment, and installation efficiency.
Developed through real world testing and engineering validation, this system delivers OEM level integration with aftermarket performance capability. It is ideal for builders creating street driven trucks, performance builds, or reliable daily drivers who want a simplified and proven LS swap solution.
Engineered for Fitment Strength and Installation Simplicity
This LS swap kit is designed as a complete system to ensure every component works together seamlessly. Each part is developed to maintain correct geometry, reduce installation complexity, and support long term durability.
• Designed for 2004 to 2012 Colorado and Canyon platforms
• Compatible with AR5 manual transmission setups
• Maintains proper driveline geometry and alignment
• Low profile crossmember improves ground clearance
• Reduces fabrication with near bolt on installation
• Tested for durability strength and repeatable fitment

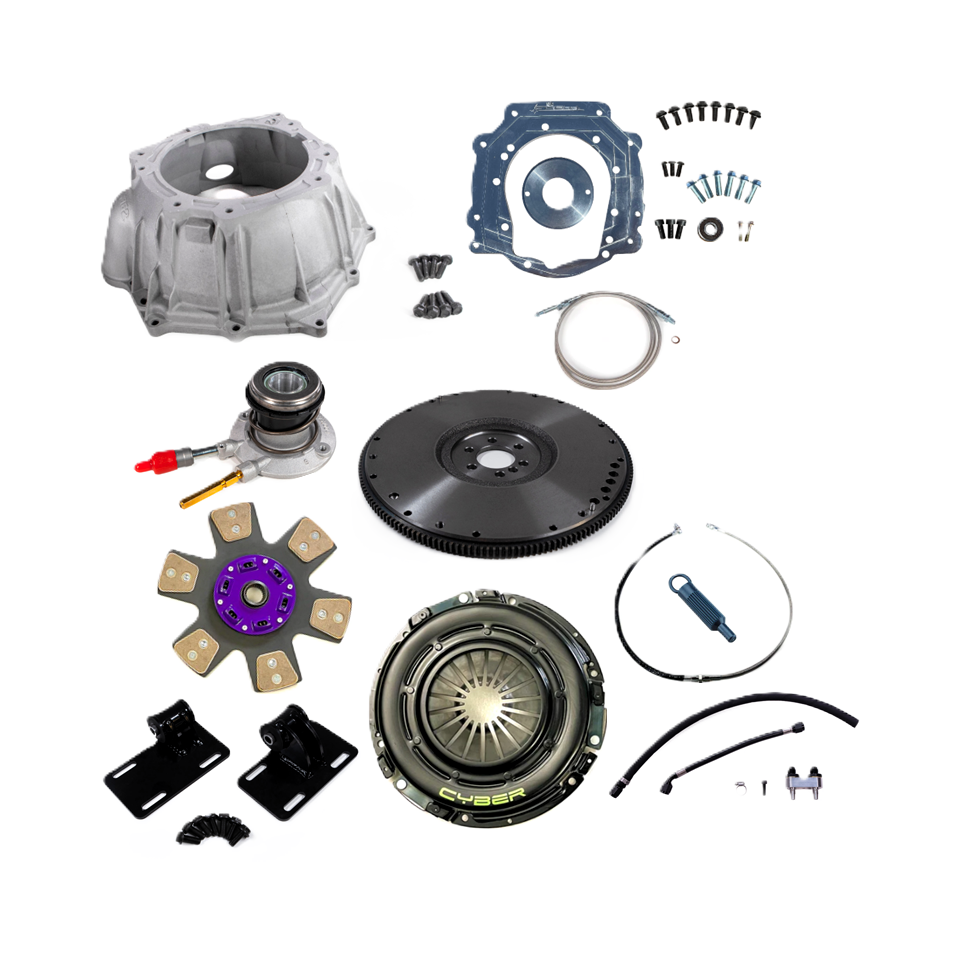

Included Components
This bundle includes the major components required to complete your LS swap with confidence and accuracy

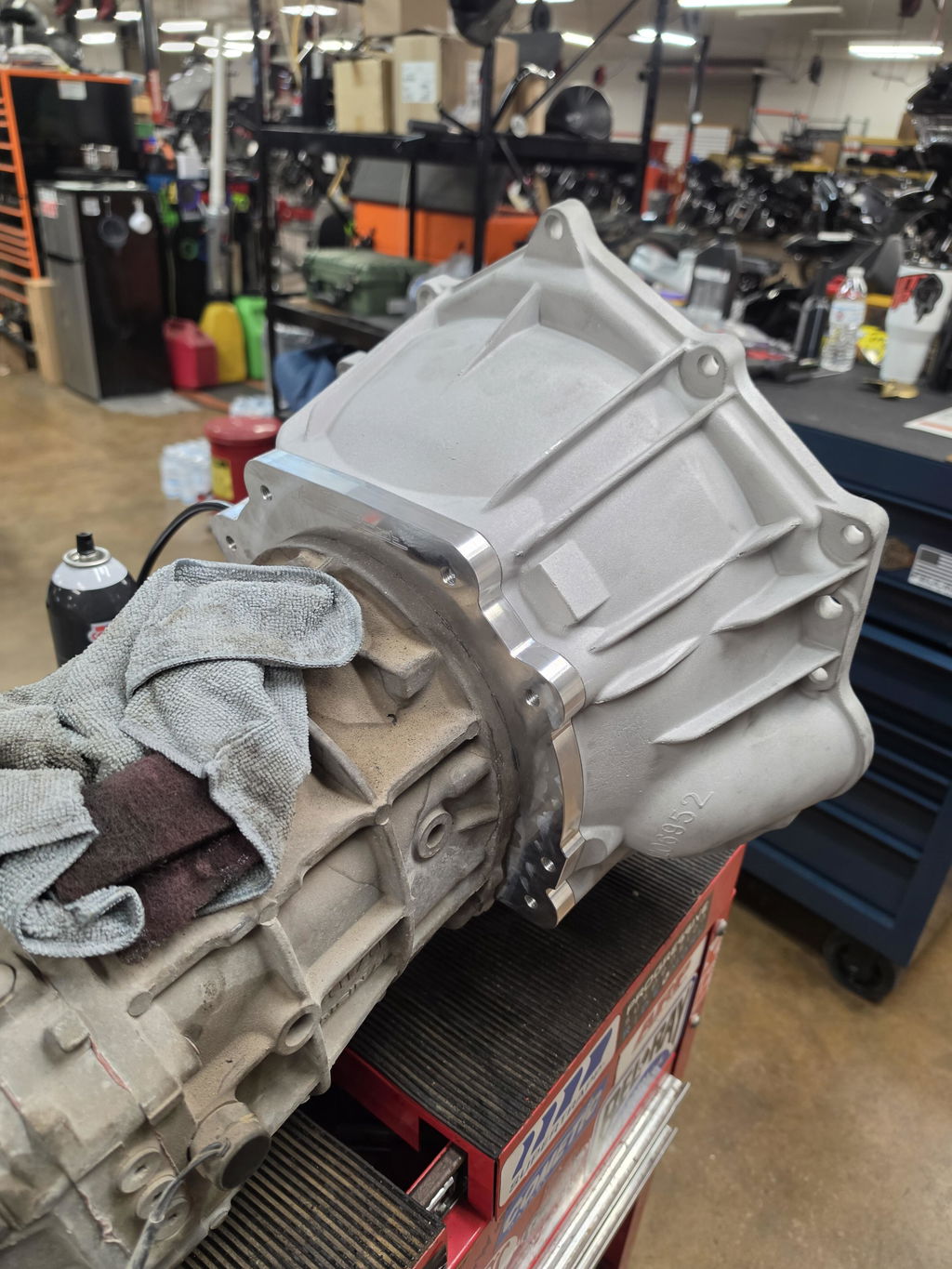

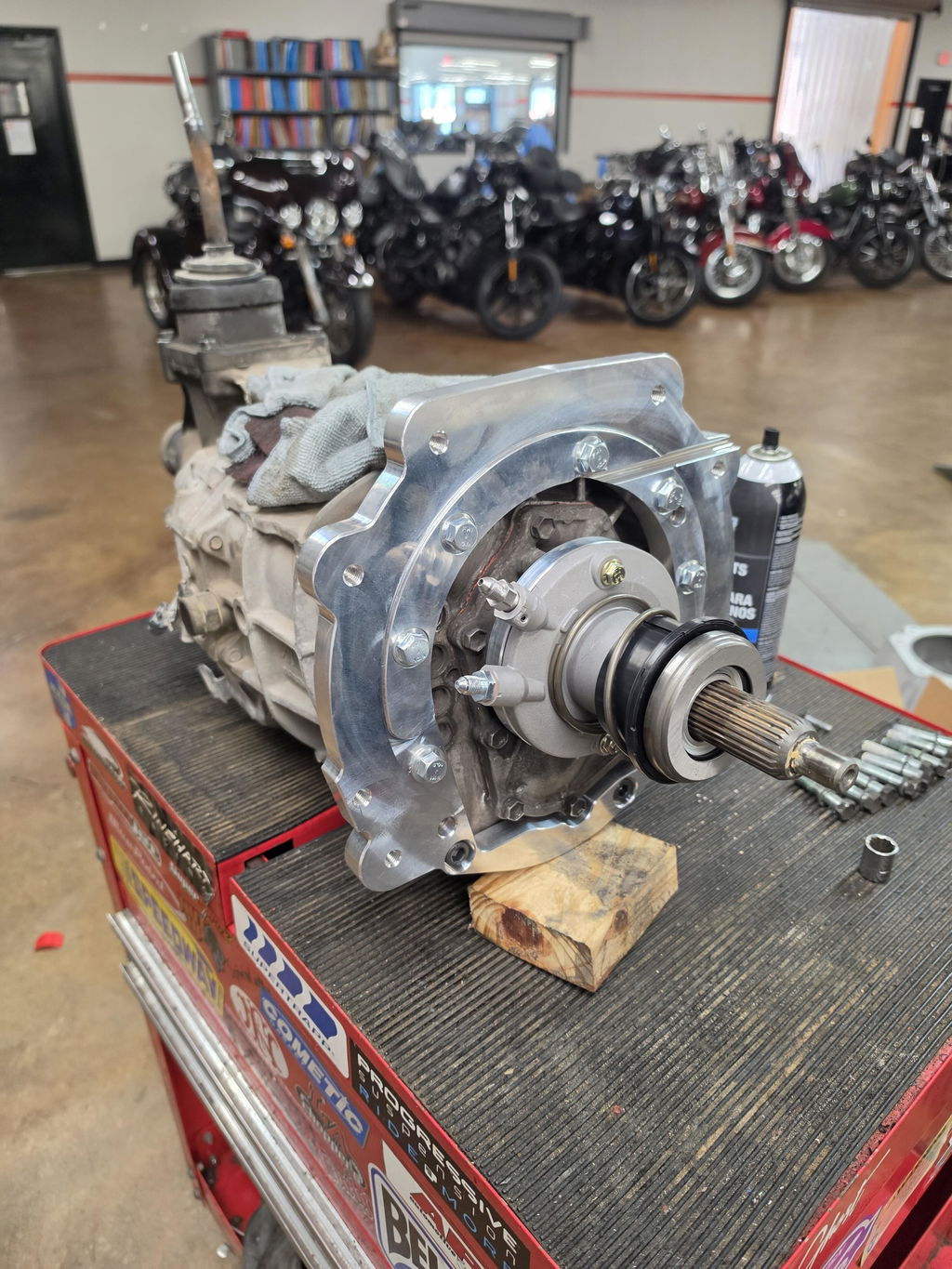

• AR5 to LS NexGen adapter kit with all required hardware
• LS1 flywheel and performance clutch kit

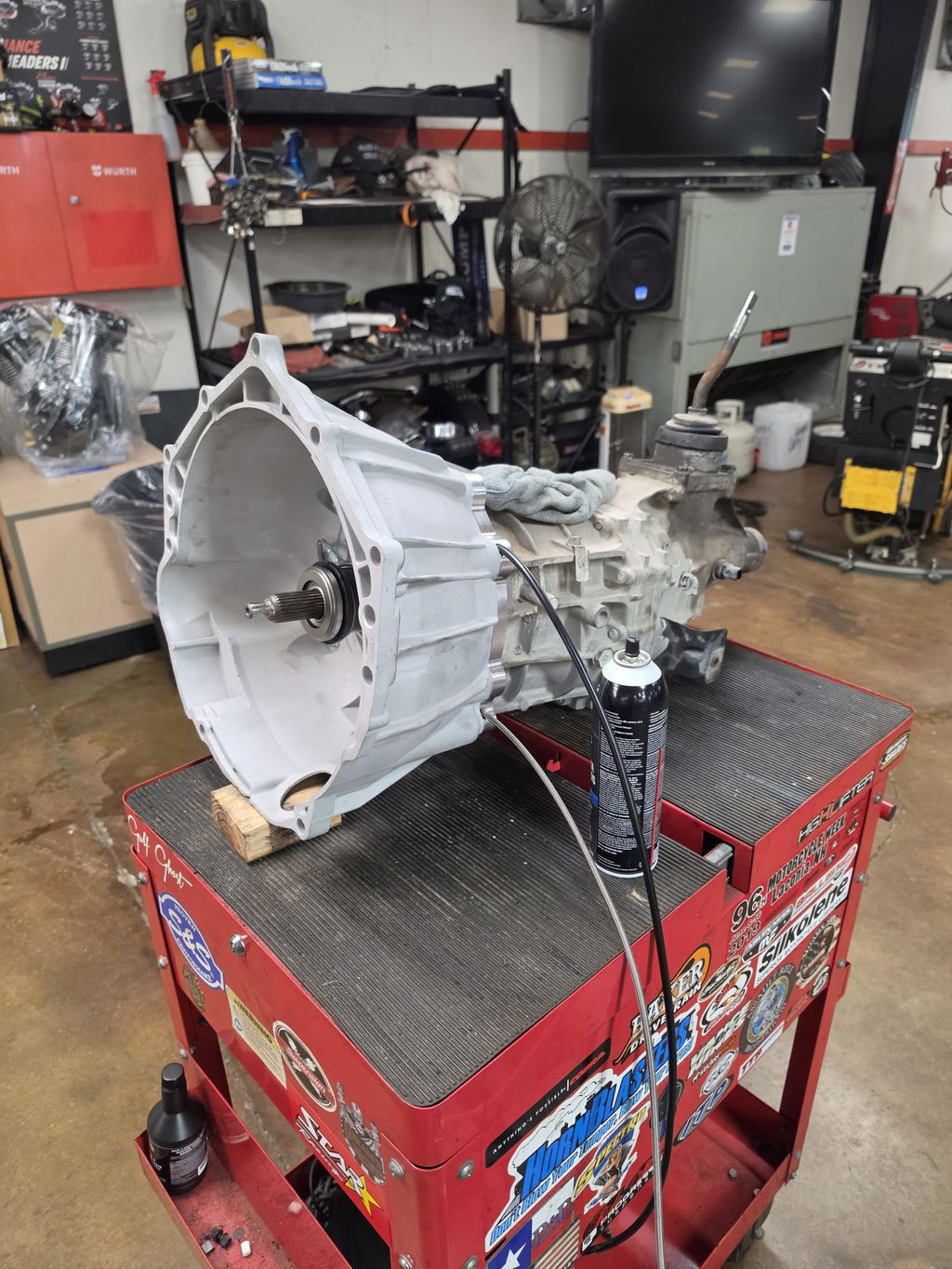

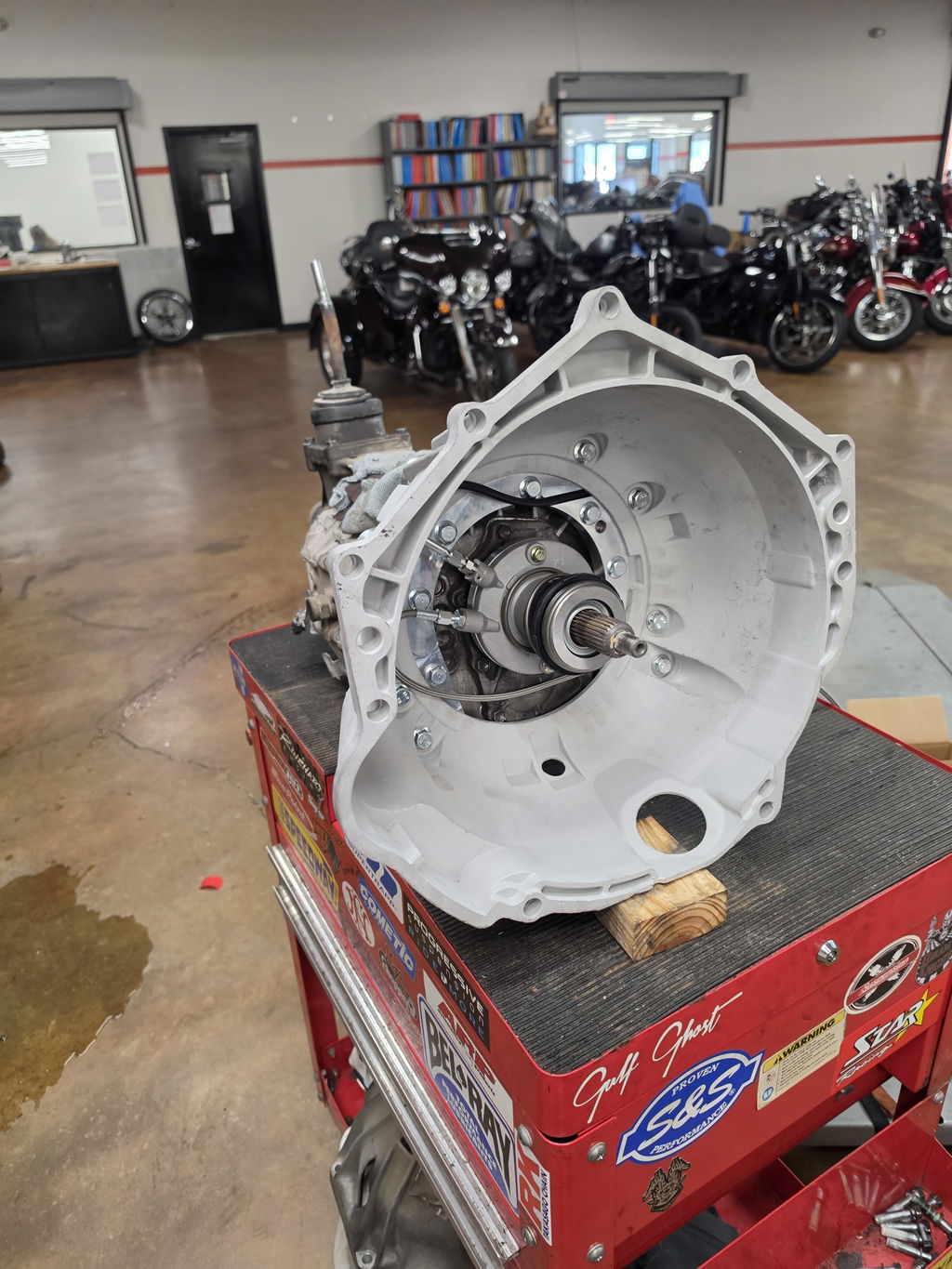

• Bellhousing kit with mounting hardware
• AR5 remote bleeder and slave cylinder with 3 AN fittings
• Colorado clutch feed line kit
• Power steering adapter with lines and fittings
• Engine swap mounts designed for Colorado and Canyon chassis
• Low profile transmission crossmember for improved clearance
• Plug and play swap ignition module with 12 volt CAN bus output
Fitment and Compatibility
• Vehicles 2004 to 2012 Chevy Colorado and GMC Canyon
• Engines LS based platforms including LS1 LS2 LS3 and similar variants
• Transmission AR5 manual transmission
Installation Notes
This kit is designed to simplify the LS swap process by providing a cohesive and engineered solution. Most components are direct fit or near bolt on which reduces the need for custom fabrication. Final installation may vary depending on your specific build configuration supporting modifications and drivetrain setup.
Built for Reliable Real World Performance
FABbot components are engineered to deliver accurate fitment structural integrity and long term durability under real driving conditions. This LS swap kit provides a complete and proven solution for builders who want a clean installation consistent performance and confidence throughout the entire build process.
| types | Transmission & Driveline |
| year | 2004-2012 |
| make | Chevy, GMC, Isuzu, Hummer |
| model | Colorado, Canyon, i-Series, H3 |
| engine | LS |
| transmission | AR5 |
| transmission type | Manual |
| number of gears | 5 |
| parts category | Transmission Adapter Bundles |
| chassis | GMT355, GMT345 |
Customer Reviews
2004-2012 Colorado / Canyon LS Swap Kit – AR5 Transmission
Thanks to this kit I was able to swap my truck in 2 days complete. Everything fit as it should, all hardware was there. Torque specs can be found on youtube. Originally recieved it with the wrong clutch disk, they promptly sent me a replacement with no issues or extra cost to me. I'd advise just getting everything they make for Colorados, I didnt at the time I ordered and ended up getting it all over the next few months anyway. 100% worth it
2004-2012 Colorado/Canyon Swap Bundle-Manual
2004-2012 Colorado/Canyon Swap Bundle-Manual

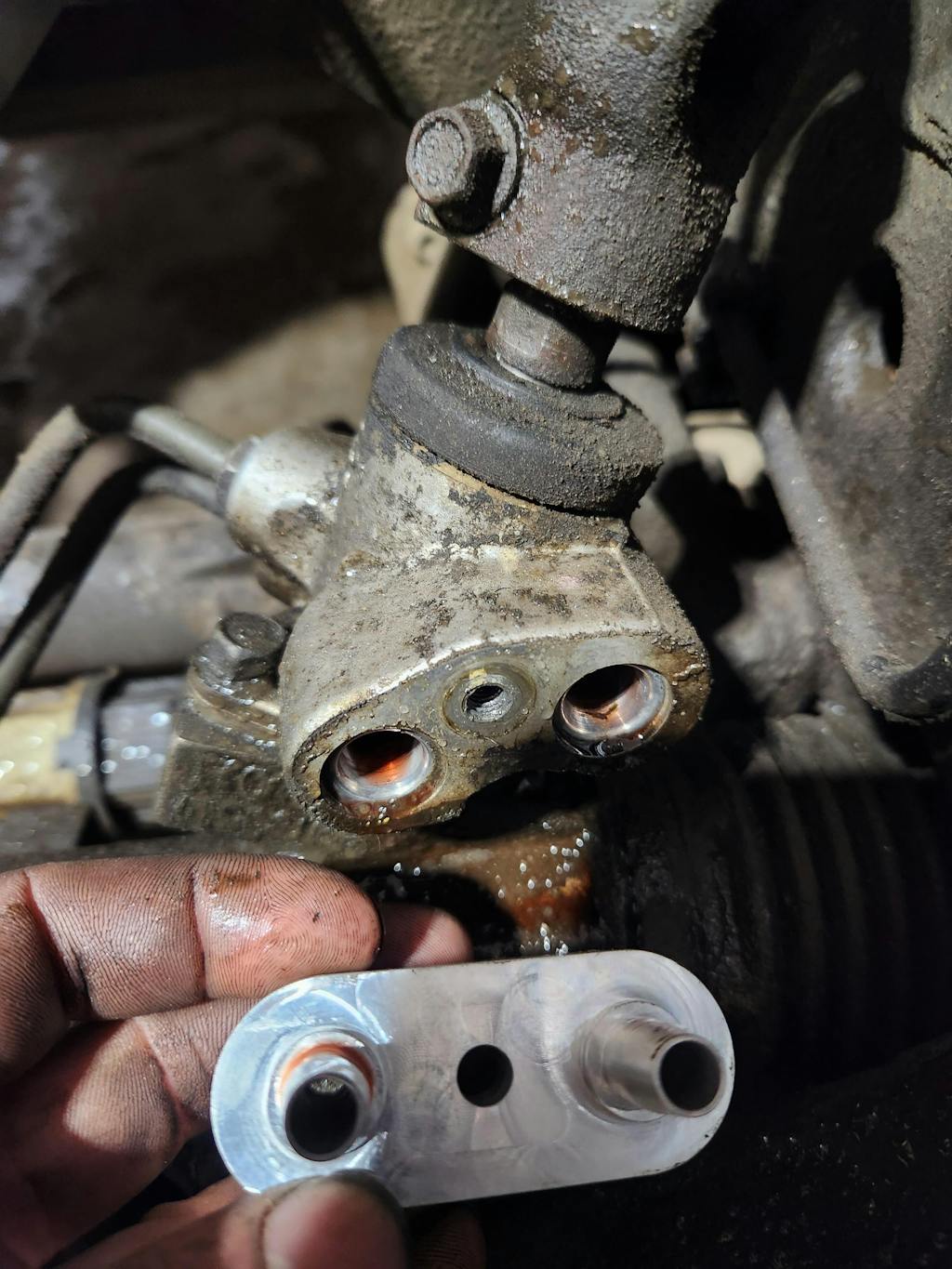

Not a bad kit for the most part however power steering adapter has no chance at fitting so be ready for that. Otherwise so far it's been great.
