SKU: 697013

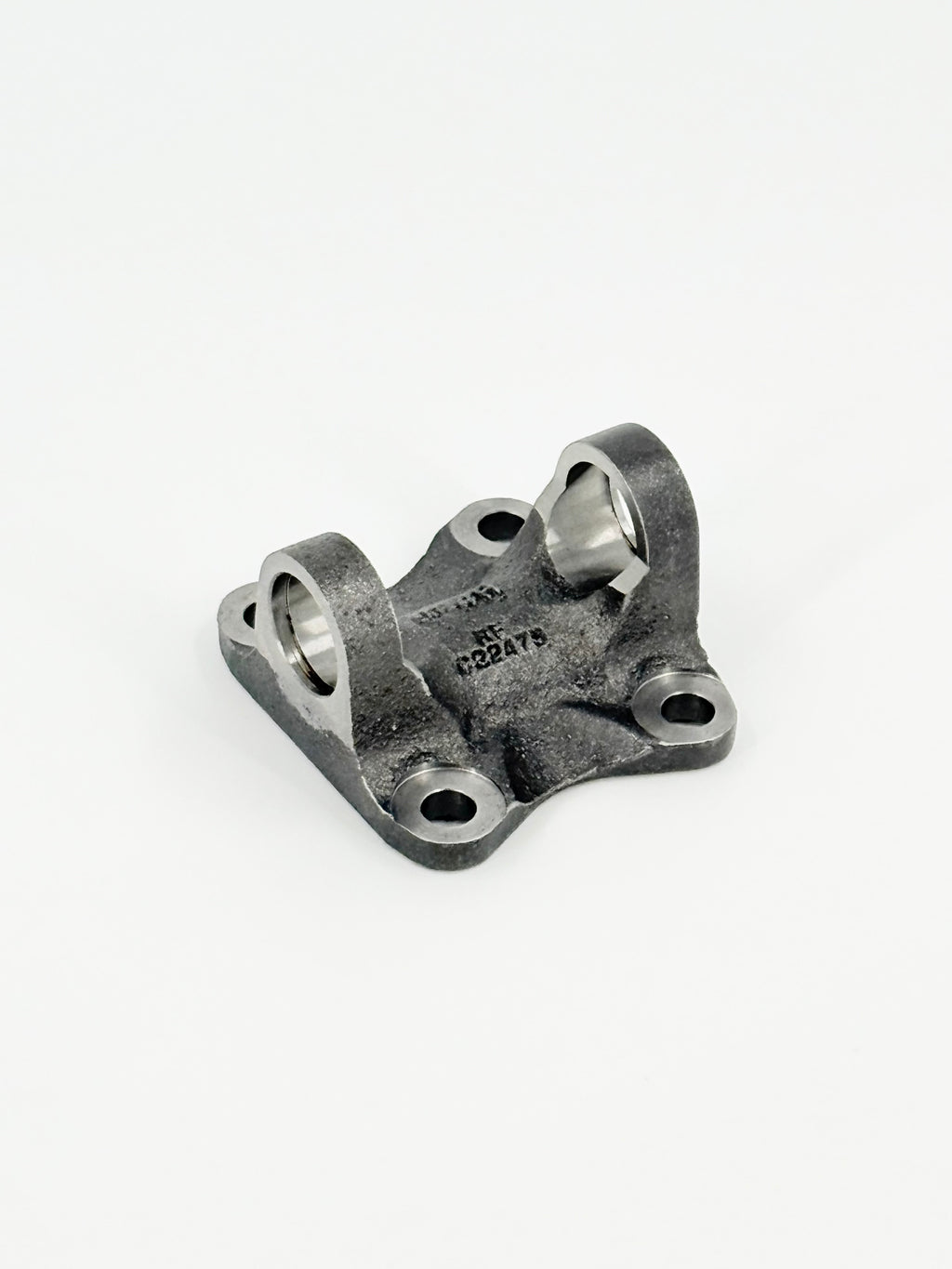

1310 Flange Yoke
1310 U Joint Flange Yoke for Driveline Conversion and Swap Applications
The 1310 flange yoke is a reliable driveline component designed to convert flange style outputs to a 1310 series U joint driveshaft connection. This allows builders to run a simple serviceable one piece driveshaft using widely available components across swap and custom builds.
Fully compatible with FABbot output flange adapters this yoke provides a cost effective and proven solution for street and moderate performance applications.
Engineered for Simplicity Compatibility and Reliability
• Designed for 1310 series U joint driveshafts
• Compatible with all FABbot output flange adapter systems
• Converts flange output to standard U joint connection
• Simplifies custom driveshaft builds
• Built for street and moderate performance applications
Technical Specifications
• U joint series 1310
• 4 bolt flange pattern
• Bolt circle 3.750 inch
• Bolt hole diameter 0.438 inch
• Pilot diameter 2.750 inch
• Flange diameter 4.625 inch
• U joint cap diameter 1.062 inch
• U joint width approximately 3.219 inch
• Flange face to U joint centerline 1.375 inch
Fitment and Compatibility
• Compatible with transmission differential and transfer case flange outputs
• Designed for use with FABbot flange adapter systems
• Requires matching bolt pattern and pilot diameter
What You Will Need
• Matching 4 bolt flange output
• Driveshaft built with 1310 series U joints
• Driveshaft length matched to chassis
Built for Reliable Real World Performance
This flange yoke provides a clean and effective driveline solution for builders who want a simple reliable and cost efficient setup. It integrates seamlessly with adapter systems and supports a wide range of swap and custom applications.
| types | Transmission & Driveline |
| parts category | Yokes |
