LS to CD009/JK/1EA Transmission Swap Bundle

Roll over image to zoom in Click on image to zoom

LS to CD009/JK/1EA Transmission Swap Bundle

Name: LS to CD009/JK/1EA Transmission Swap Bundle
Brand: FABbot
SKU: cd009bunspsf
Price: 2140.00 CAD
Availability: InStock
Rating: 4.89 (9 reviews)

FABbotSKU: cd009bunspsf

Clutch: Cyber Street Pressure Plate (750 ft.lbs.)

Flywheel: FABbot LS1 Flywheel

Variant

Price:

$2,140.00

Quantity:

Share this product

LS to CD009/JK/1EA Transmission Swap Bundle – Complete LS to Nissan Transmission Conversion Kit

Simplify your LS engine swap with our all-in-one LS to CD009/JK/1EA Transmission Swap Bundle. This comprehensive kit combines a durable LS to CD009/JK/1EA adapter with a high-performance clutch system, flywheel, bellhousing kit, and all essential hydraulic components. Designed for street, performance, and custom LS swap applications, this bundle provides everything needed for a reliable, seamless, and professional LS-to-Nissan transmission conversion.

Key Features

Complete LS to CD009/JK/1EA adapter solution for all CD0##, JK4##, and 1EA## transmissions
Adapter plate comes with a new input shaft seal installed for durability and leak prevention
Compatible with T56 F-Body clutch pressure plate, flywheel, and slave cylinder
Includes a custom rebuildable clutch disc
Utilizes a stock LS starter and factory GM 4L60E bellhousing for cost-effective installation
Choose between Street Performance or Race clutch pressure plate:
- Street Performance: holds up to 750 ft-lbs of torque
- Race Plate: holds up to 1000 ft-lbs of torque
Durable, affordable, and easy to install for both DIY and professional builds

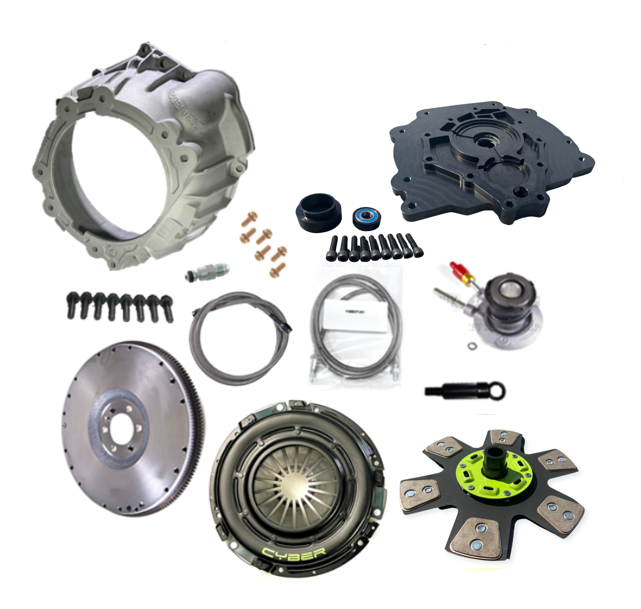

What’s Included

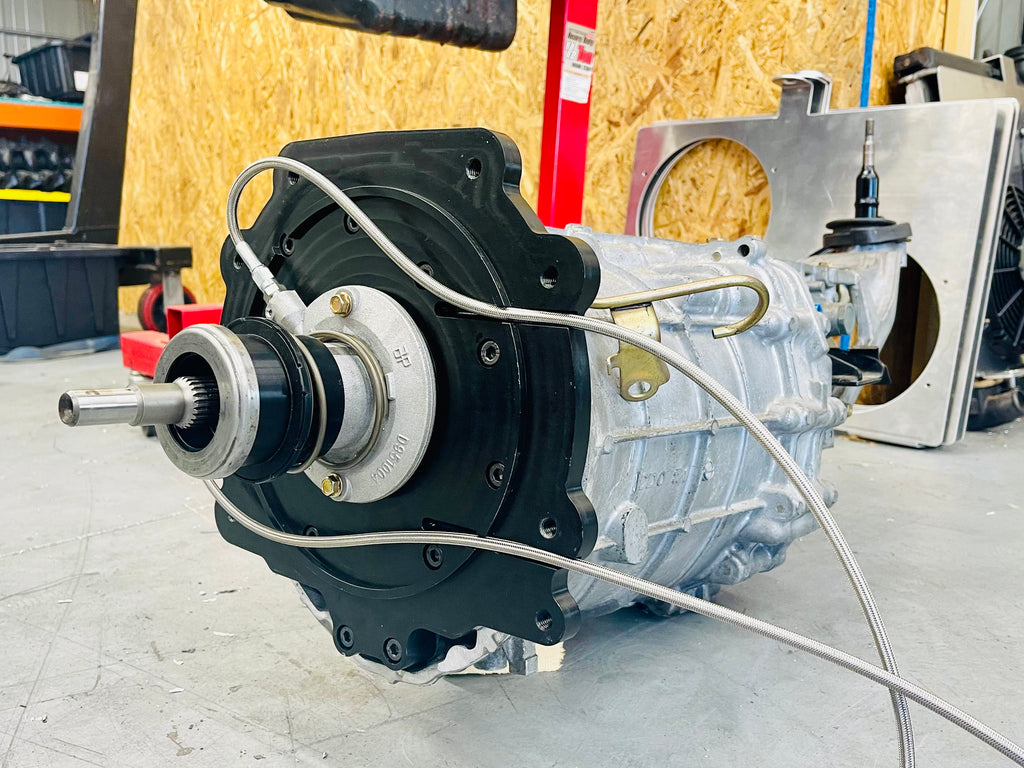

LS to CD009/JK/1EA Adapter Kit

Adapter Plate (with new input shaft seal installed)

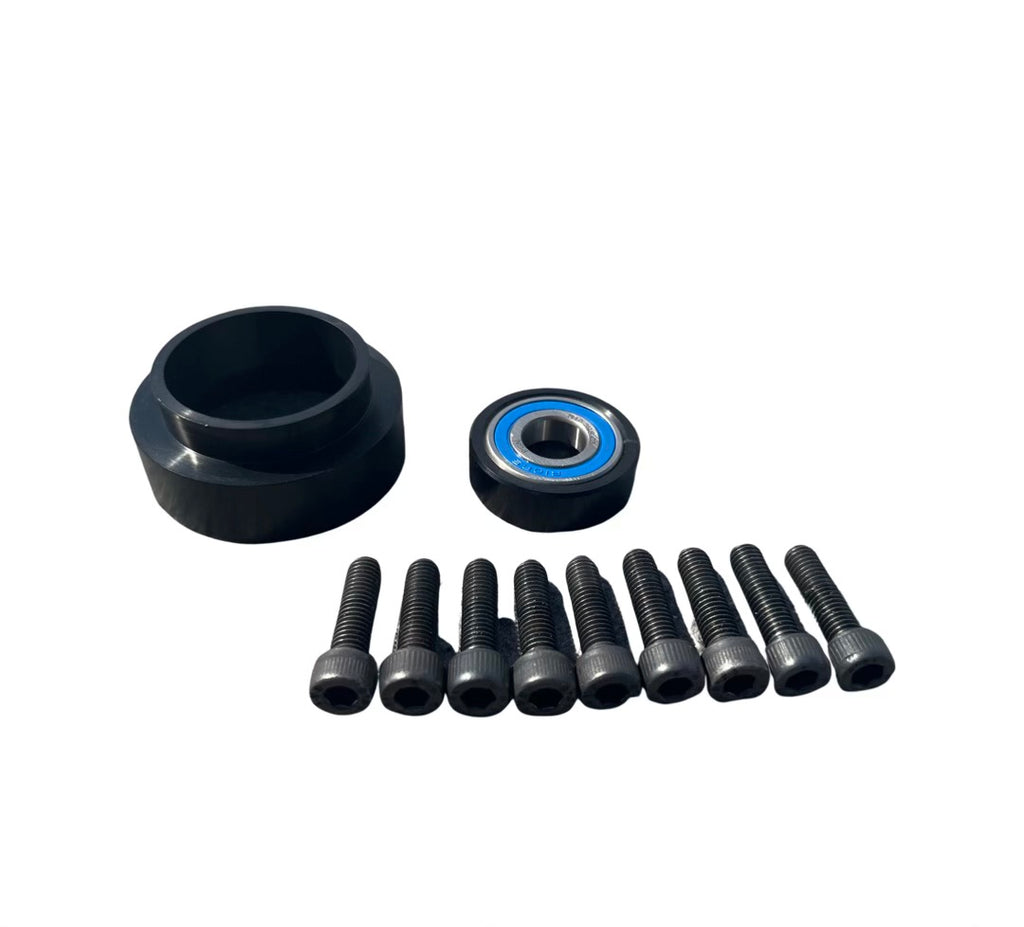

Pilot Bearing
Clutch Slave Cylinder Spacer

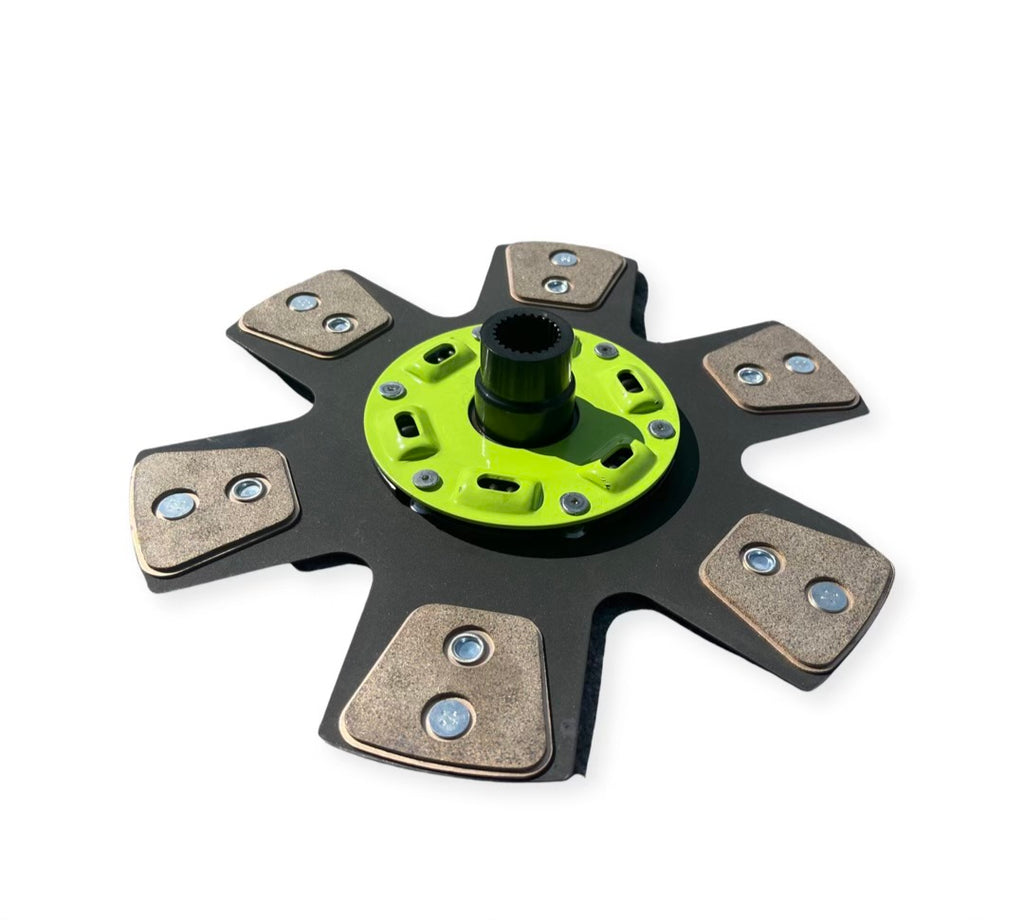

Custom rebuildable clutch disc

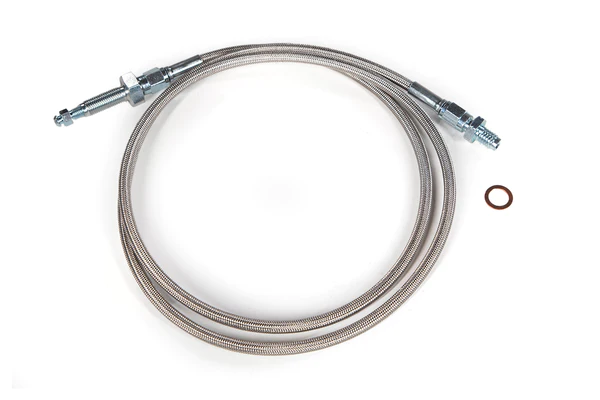

Remote Clutch Bleeder

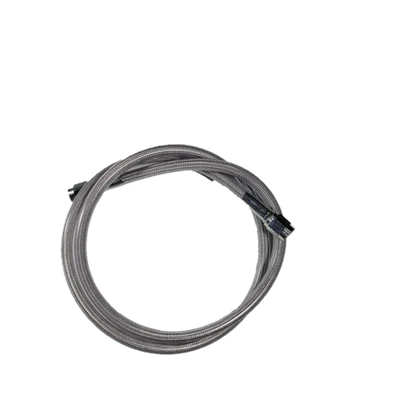

-3AN 36" Hydraulic Clutch Feed Line

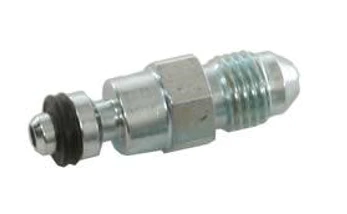

T56/AR5 -3AN Clutch Adapter Fitting
Input shaft bearing adapter rings (90mm and 95mm)
Clutch alignment tool
All necessary hardware

Additional Components

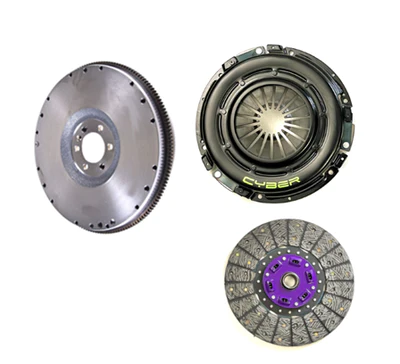

LS1 Flywheel
OEM GM Flywheel Bolts

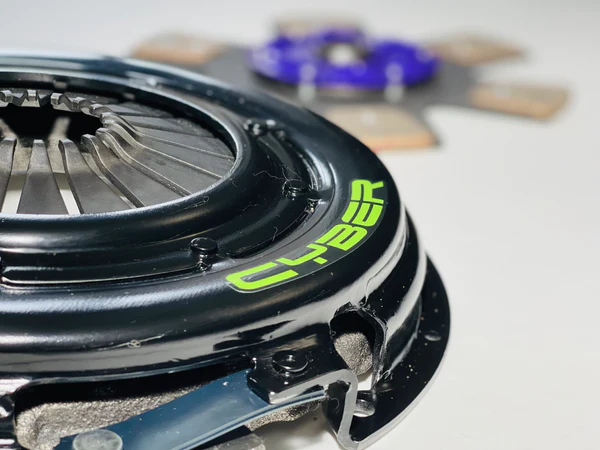

Cyber Clutch Pressure Plate of your choice (Street or Race)

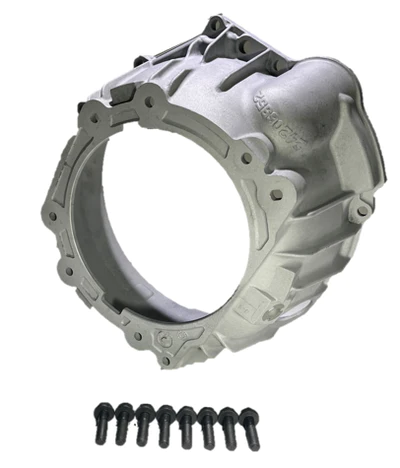

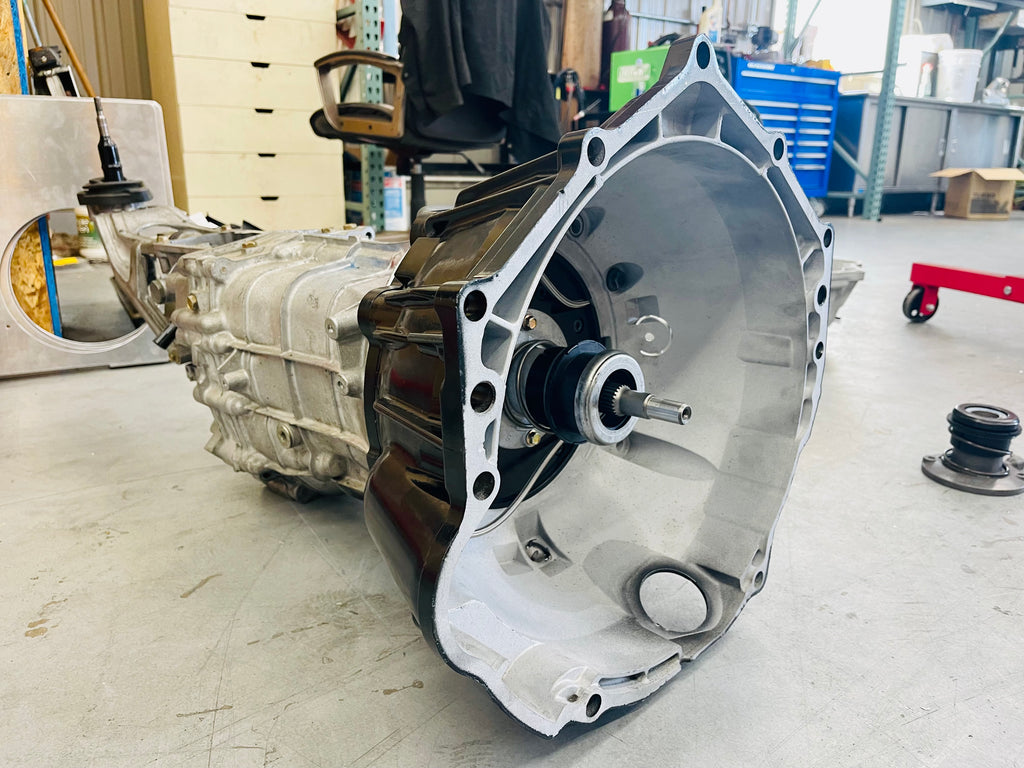

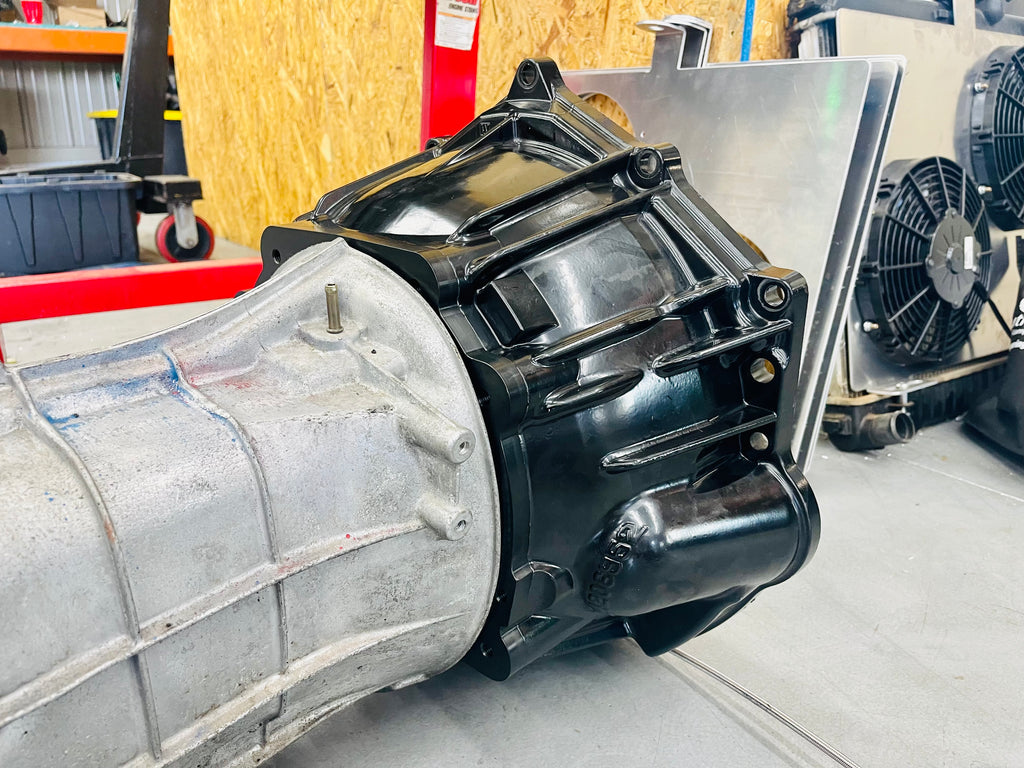

Bellhousing kit, including hardware

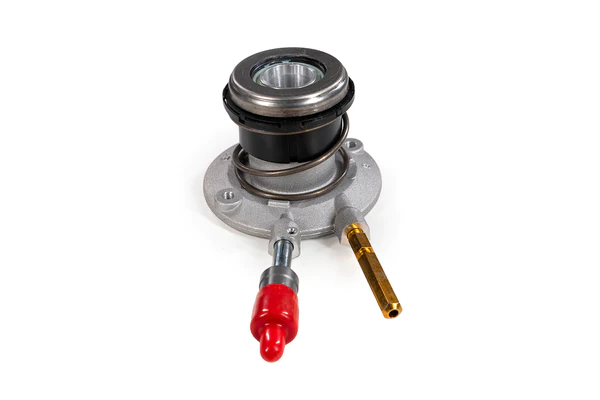

Hydraulic Clutch Slave Cylinder

Transmission Compatibility

This bundle is compatible with a wide range of Nissan transmissions, including:

CD001 through CD009 and CD00A – Pre-VQ35HR/VQ37VHR 350Z and G35/G37 models
JK40C, JK41A, JK41B – VQ35HR/VQ37VHR 350Z and G35 up to mid-2008 (Z33 up to 6/08, V36 up to 7/08)
1EA0A and 1EA0B – Z33/Z34 from 7/08 and V36 from 8/08

Effectively, this kit covers all CD0##, JK4##, and 1EA## transmissions.

Clutch Master Cylinder Recommendations

Recommended bore: 3/4"
For pedal ratios over 6:1, use a 7/8" bore

Replacement Clutch Discs

Replacement rebuildable clutch discs are available separately on our website.

This LS to CD009/JK/1EA Transmission Swap Bundle delivers a complete, cost-effective, and high-performance solution for LS engine conversions, ensuring reliability, superior clutch performance, and a streamlined installation process.

📞 Questions or want to check stock? Call our sales line at 763-670-6941

So far everything went together incredibly easily everything looks very nice. And works perfectly fine. I have all got it all together. Just haven’t put in the car yet. Had to pull my engine to modify the firewall

Realistically, the only thing I dislike was because I’m so far away the packaging didn’t hold up perfectly. Some of the bolts made their way into the pressure plate that was hard to get out. And then the boxes were completely destroyed. I assume they were taped back together. I think the bell housing was dropped at some point because on the one edge there’s like a roll in the casting.

But again that has no bearing on you guys that was the shipping company handling the product and as we know, they’re not the nicest people on packages especially heavy ones

It did make it all the way to me in Ontario Canada,

Came with everything needed to put my cd09 trans onto my ls

FABbot LS to CD009 Adapter Bundle

I was worried at first

I was worried at first because their social media has been silent and they have some reviews about bad communication. Their phone line sends you straight to voicemail and their box is full. I reached out to them via email and they got back to me to let me know my order would be going out soon. Once I received it everything looked great and went together smooth. Can’t complaint about the kit itself at all. I wish they had paper instructions with torque specs and all that or even a link to their YouTube channel. You’re kind of just left to figure it out. But to be fair if you can’t figure this kit out you shouldn’t be doing this kind of heavy modification to your car. So all in all the kit is great, I received everything pretty quick. I was just worried at first due to communication and iffy past reviews on other sites.

Great

Awesome customer service! Great quality!
