12" GM 1.125" 26 Spline LS/SBC 6 Puck Ceramic Clutch Disk

6 Puck Ceramic Clutch Disc 12 Inch LS Clutch Disc 26 Spline

12 Inch 6 Puck Ceramic LS Clutch Disc for 26 Spline Performance Setups

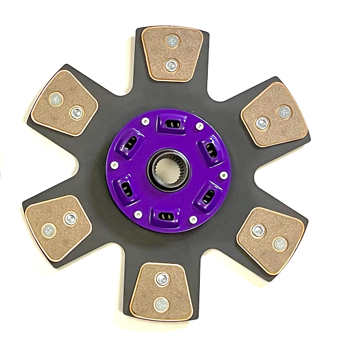

The 6 puck ceramic clutch disc is a high performance clutch disc designed for Gen 3 and Gen 4 LS manual transmission applications including T56 TR6060 and AR5 setups. This is the same proven component used in FABbot Stage 2 and Stage 3 clutch kits and is built to deliver maximum holding power increased heat capacity and aggressive engagement for demanding LS builds.

Designed for boosted nitrous and high horsepower applications this disc provides the torque capacity and durability needed when standard street clutch materials are no longer enough.

Engineered for High Torque Capacity and Aggressive Engagement

• Designed for 26 spline manual transmission input shafts
• 6 puck ceramic friction material for increased torque capacity and heat resistance
• Sprung hub design helps absorb drivetrain shock under load
• Proven in FABbot Stage 2 and Stage 3 clutch systems
• Built for aggressive driving and performance use
• Designed for high horsepower LS applications where durability matters

Clutch and Torque Capacity

• Rated for approximately 750 foot pounds of torque with Cyber Street pressure plate
• Rated for approximately 1000 foot pounds of torque with Cyber HD race pressure plate
• Intended for builders needing more holding power than carbon Kevlar or organic clutch materials

Technical Specifications

• Clutch size 12 inch
• Spline count 26 spline
• Material ceramic with 6 puck design
• Hub type sprung hub
• Torque capacity 750 to 1000 foot pounds depending on pressure plate

Fitment and Compatibility

• Compatible with T56 manual transmissions
• Compatible with TR6060 manual transmissions
• Compatible with AR5 transmissions used in FABbot LS swap kits
• Not compatible with FABbot CD009 JK or EA200 adapter systems
• Only compatible with 26 spline input shaft transmissions

What You Will Need

• 26 spline transmission input shaft
• Cyber Street pressure plate or Cyber HD race pressure plate depending on torque target
• Standard 168 tooth LS flywheel
• Supporting clutch installation components including pilot bearing alignment tool and hardware

Built for Reliable Real World Performance

This 6 puck ceramic clutch disc is built for serious LS performance where fast engagement heat resistance and torque capacity are critical. It delivers the holding power and durability required for aggressive street drift drag and competition builds while maintaining correct fitment for 26 spline transmission setups.
